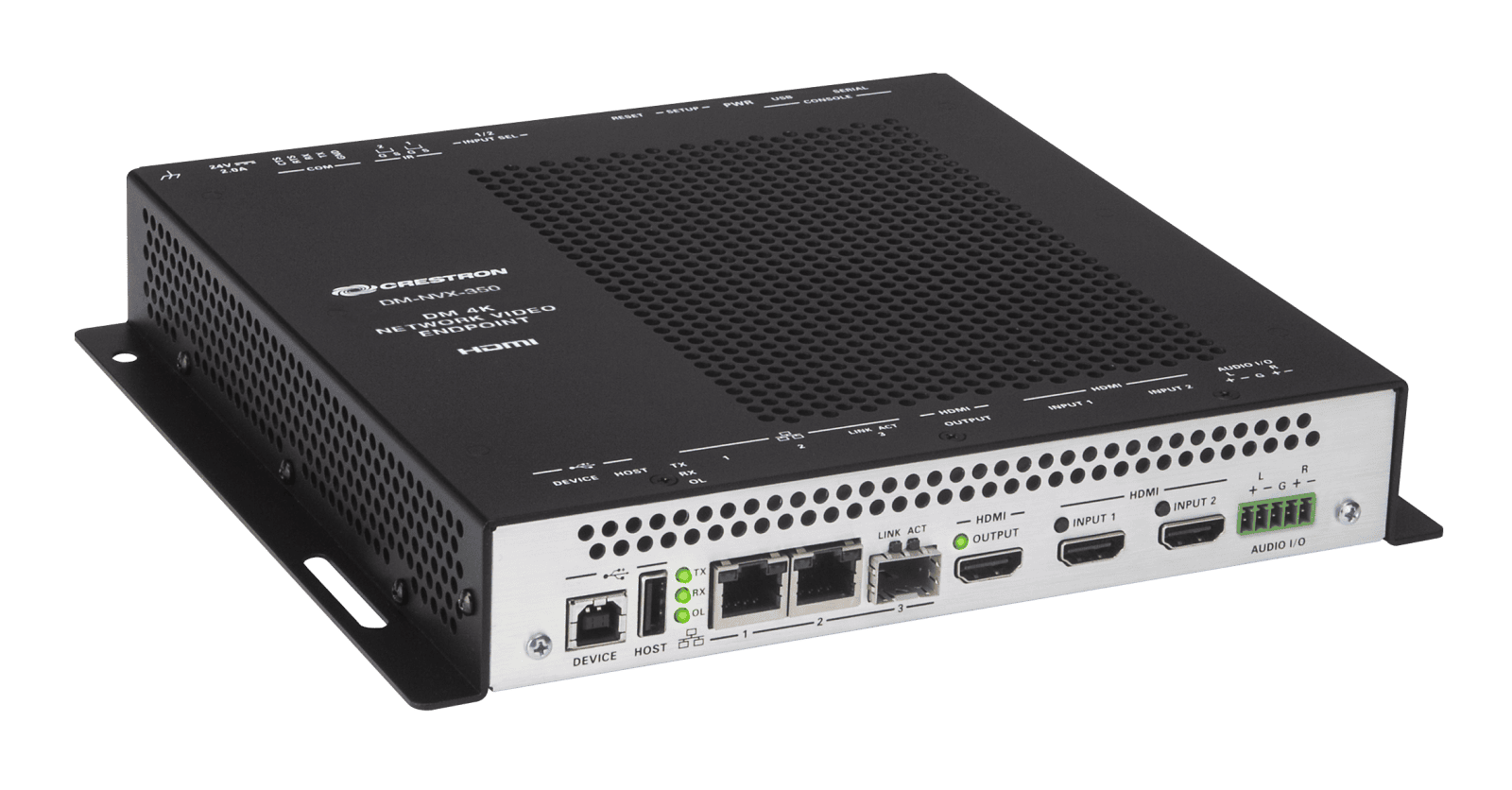

NVX-350: DigitalMedia™ 4K60 4:4:4 HDR Network AV Encoder/Decoder

Encoding/Decoding:
- Video Compression (chuẩn nén hình ảnh): JPEG 2000
- Video Resolutions (độ phân giải hình ảnh): Up to 4096x2160@60Hz (DCI 4K60), 4:4:4 color sampling, HDR10 & Deep Color support
- Audio Formats Primary (định dạng âm thanh): multichannel (up to 8-channel LPCM or encoded HBR 7.1 surround sound), secondary 2-channel LPCM
- Bitrates: 100 to 990 Mbps
- Giao thức Streaming: RTP, RTSP, SDP
- Container: MPEG-2 transport stream (.ts)
- Session Initiation: Multicast via RTSP
- Copy Protection: HDCP 2.2, AES-128, PKI

Video
- Input Signal Types (tín hiệu đầu vào): HDMI w/HDR10, Deep Color, & 4K60 4:4:4 support (Dual-Mode DisplayPort & DVI compatible )
- Output Signal Types (tín hiệu đầu ra): HDMI w/HDR10, Deep Color, & 4K60 4:4:4 support (DVI compatible)

- Switcher: 3x1 manual or auto-switching, limited audio breakaway, Crestron QuickSwitch HD™ technology
- Scaler: 4K60 4:4:4 video scaler with motion-adaptive deinterlacing, intelligent frame rate conversion, Deep Color support, HDR10 support, widescreen format selection (zoom, stretch, maintain aspect-ratio, or 1:1), video wall processing up to 8 wide x up to 8 high, static or dynamic text overlay
- Copy Protection (bảo vệ sao chép): HDCP 2.2

Audio:
- Input Signal Types (tín hiệu đầu vào): HDMI (Dual-Mode DisplayPort compatible), analog stereo
- Output Signal Types (tín hiệu đầu ra): HDMI, analog stereo
- Digital Formats (chuẩn tín hiệu âm thanh số) Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS ES, DTS 96/24, DTS HD High Res, DTS HD Master Audio, DTS:X, LPCM up to 8 channels
- Analog Formats: Stereo 2-Channel
- Analog-To-Digital Conversion: 24-bit 48 kHz
- Digital-To-Analog Conversion: 24-bit 48 kHz- Analog Performance:
o Frequency Response: 20 Hz to 20 kHz ±0.5 dB;
o S/N Ratio: >95 dB 20 Hz to 20 kHz A-weighted;
o THD+N: <0.005% @ 1 kHz;
o Stereo Separation: >90 dB
- Analog Output Volume Adjustment (điều chỉnh âm lượng đầu ra analog): −80 to +20 dB

Communications:
- Ethernet: 10/100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1x, IPv4, Active Directory authentication, variable Multicast TTL, HTTPS web browser setup and control, Crestron control system integration
- USB: USB 2.0 host or device signal extension and routing; USB 2.0 computer console (for setup)
- RS-232: 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking (via control system); computer console (for setup)- IR/Serial: 1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0-5 Volts) up to 19.2k baud (via control system)
- HDMI: HDCP 2.2, EDID, CEC DM NVX (via Ethernet) HDCP 2.2, AES-128 AV content encryption with PKI authentication, RTP, RTSP, SDP, ONVIF, IGMPv2, IGMPv3, SMPTE 2022, FEC (Forward Error Correction)

Connectors:
- USB DEVICE: (1) USB Type B connector, female; USB 2.0 device port; USB signal extender port for connection to a computer or any other USB 2.0 host
- USB HOST: (1) USB Type A connector, female; USB 2.0 host port;
 USB signal extender port for connection of a mouse, keyboard, or any other USB 2.0 device; Available Power: 500 mA at 5 Volts DC
- LAN 1 (1) 8-pin RJ45 connector, female; 10Base-T/100Base-TX/1000Base-T Ethernet port; PD (powered device) port compatible with Crestron DM-PSU-ULTRA-MIDSPAN or approved third-party PSE- LAN 2 (1) 8-pin RJ45 connector, female; 10Base-T/100Base-TX/1000Base-T Ethernet port
- LAN 3 (1) SFP port; Accepts one Crestron SFP-1G series SFP transceiver module
- HDMI OUTPUT: (1) HDMI Type A connector, female; HDMI digital video/audio output (DVI compatible)
- HDMI INPUT 1 – 2: (2) HDMI Type A connectors, female; HDMI digital video/audio inputs;
 (DVI & Dual-Mode DisplayPort compatible [13])
- Các tiêu chuẩn về AUDIO I/O:
o (1) 5-pin 3.5 mm detachable terminal block;
o Balanced/unbalanced stereo line-level audio input or output;
o Input Impedance: 24k Ohms balanced/unbalanced;
o Maximum Input Level: 4 Vrms balanced, 2 Vrms unbalanced;
o Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced;
o Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced- CONSOLE, SERIAL:
o (1) 8-pin RJ45 connector, female;
o RS-232 computer console port (for setup)
- CONSOLE, USB:
o  (1) USB Type B connector, female;
o USB 2.0 computer console port (for setup)
- IR 1 – 2 :
o (1) 4-pin 3.5 mm detachable terminal block;
o Comprises (2) IR/Serial ports;
o IR output up to 1.1 MHz;
o 1-way serial TTL/RS-232 (0-5 Volts) up to 19200 baud;
o IRP2 emitter sold separately
- Các tiêu chuẩn về cổng COM:
o (1) 5-pin 3.5 mm detachable terminal block;
o Bidirectional RS-232 port; Up to 115.2k baud, hardware and software handshaking support

Power:
- Power Pack (included) Input: 1.5 Amps maximum @ 100-240 Volts AC, 50/60 Hz;
- Output: 2 Amps @ 24 Volts DC;
- Power over LAN: Compatible with the following PSEs
- Power Consumption: 35 Watts typical
